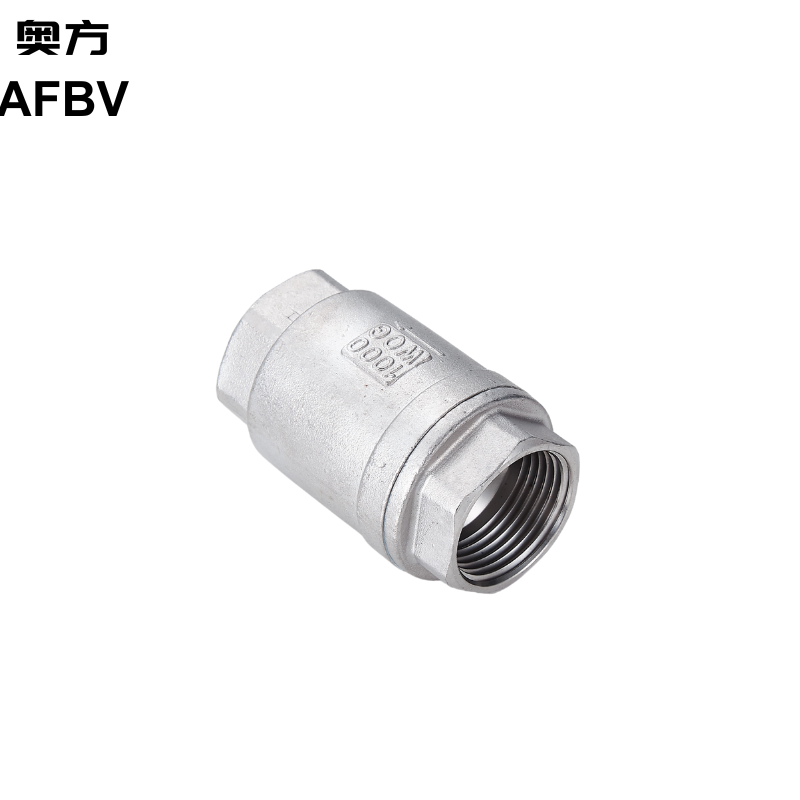

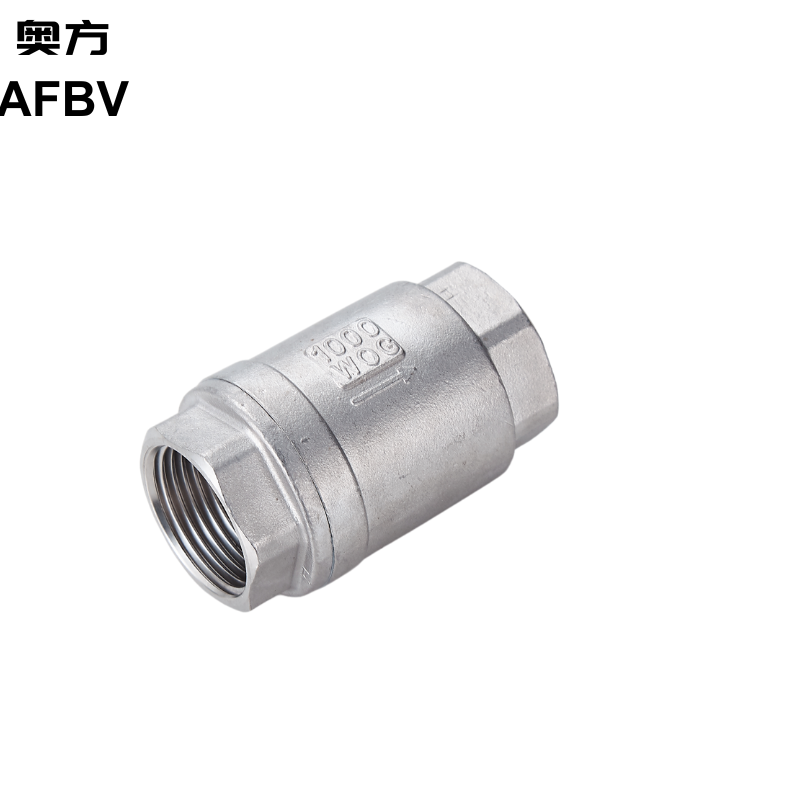

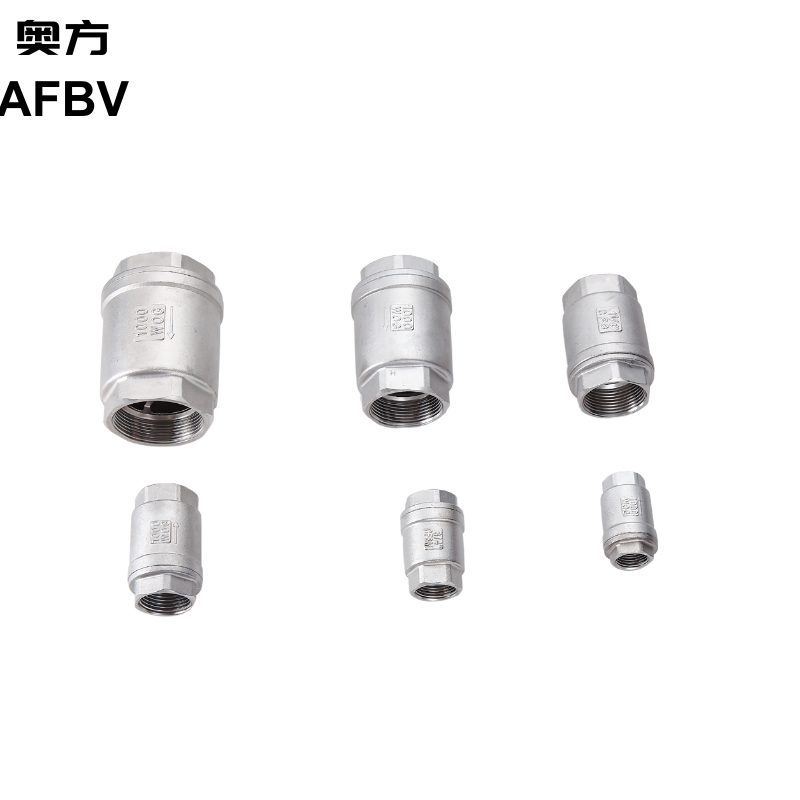

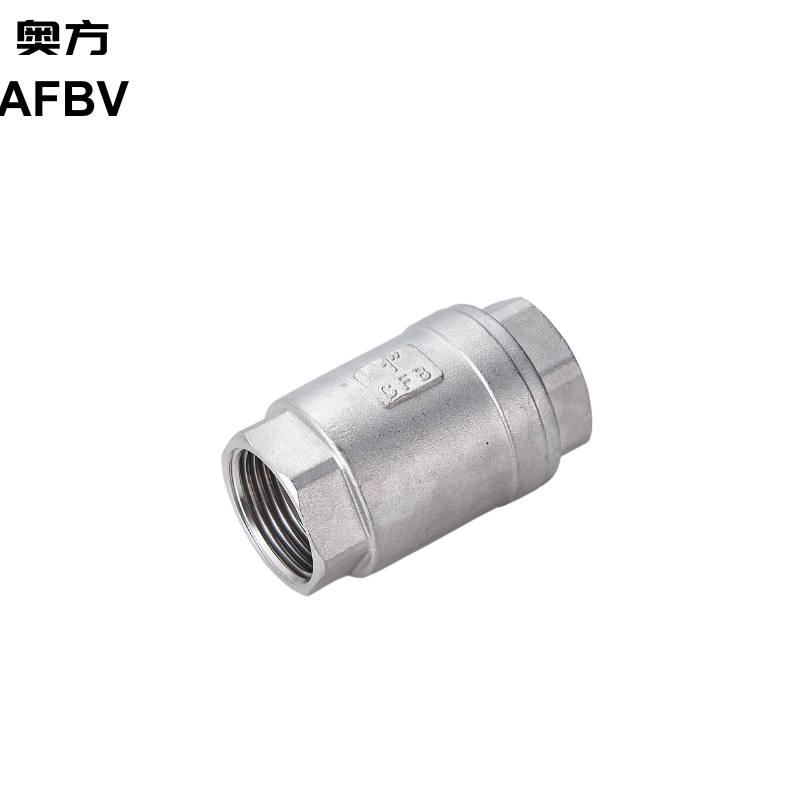

Spring Loaded Non Return Valve 1000psi Stainless Steel Check Valve

Function Description:

  1. Swing check valve disc shapes as a disc, which is around seat channel shaft for rotary motion.
    2.  Its main function is to prevent medium for backflow, the pump and drive motor for reversal and container medium for relief.
    3.  It is suitable for low velocity and the flow doesn’t often change in large diameter occasion.

Application:
 Applicable Temperature: ≤425 ºC

 Main Materials: WCB/CF8/CF8M/CF3/CF3M

 Applicable Medium: Water / Oil / Gas / Causticity Medium

 Pressure Rating: PN10-PN100, 150LB-1500LB

 Size Range: 1/2″ ~ 4″(DN15-DN100)





Main Material:

ITEM PART MATERIAL
1 BODY CF8M CF8
2 DISC CF8M CF8
3 PIN 304
4 GASKET PTFE
5 GASKET PTFE
6 CAP CF8M CF8
